Wednesday, 22 December 2010

SQL Developer DB2 Connection

SQL Developer 2.1.1 (and 3.0) supports browsing of IBM DB2 LUW 7, 8, 9 databases.
IBM DB2 iSeries and ZSeries Z/OS are not supported at this time.

To connect to DB2 LUW, SQL Developer first needs the correct JDBC driver.
Only one specific JDBC driver is supported.
db2jcc.jar with db2jcc_license_cu.jar

All other IBM drivers are not supported and may cause problems even if the above two drivers are specified. So best to only add the above two.

These drivers are usually found in your own DB2 database install or DB2 client install.
They are also available when you agree to the license (please check this first) and download IBMs DB2 Express-C database or Data Studio Standalone administration tools
http://www-01.ibm.com/software/data/db2/express/download.html

Once you have a DB2 client or database installed you can search for the specific JDBC jar files.
  • db2jcc.jar
  • db2jcc_license_cu.jar
Note you cannot use db2jcc4.jar and this would cause issues if added to SQL Developers Third Party JDBC Drivers list.

Heres what my preference page looks like. (note, JTDS is for SQL Server and Sybase)












Once the correct jar file has been added you now have an extra DB2 tab in the connections dialog

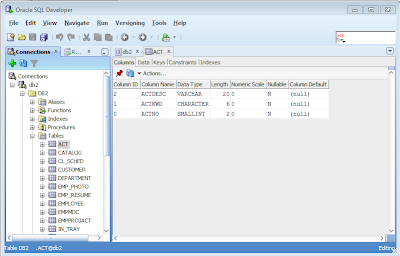

Once you add your connection details you can browse your DB2 database objects.















You can learn more about migrating to Oracle from IBM DB2 LUW here
